| VIDEO MEASUREMENT SYSTEM: DELTRONIC VMS-121 SSYSTEM |
The VMS-121 was designed to offer superb video measurement capabilities. It gives fast, top-quality
measuring results at an economical cost. Excellent image acquisition and processing tools combined
with software to provide a combination of technical advantages. Graphic user interface simplifies
your part programming and day-to-day operations. This machine is motor-driven and can be automated.
|
| Standard Features |
 |
· 10" X 19" Precision Measuring Stage with
6" X 12" Travel
· 6" X Axis Focus Travel
· Motorized X, Y, and Z Joystick Stage
· .0005"/.001 mm Resolution Scales for
X, Y, and Z
· High Intensity Collimated Contour Illumination
· Quad-Fiber Optic Surface Illumination
· Coaxial Illumination
· Motorized Zoom Video Lens with 2X Auxiliary
Lens (75X to 475X)
· Digital Crosshair Generator
· Solid-State Color Camera
· 13" Color Monitor
|
| Optional Features |
· MPC-5 Digital Readout
· MPC-6 Digital Readout
· Pentium/300 PC Systems
· MPC-6 X & Y Upgrades
· Edge-Sensing
· Renishaw TP20 Probe Interface
· MPC-6 Video Automated Measurement System
|

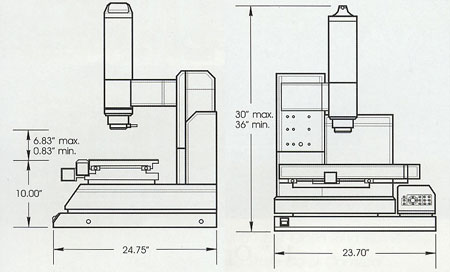

| Deltronic VMS-121 Design Schematic |
|
