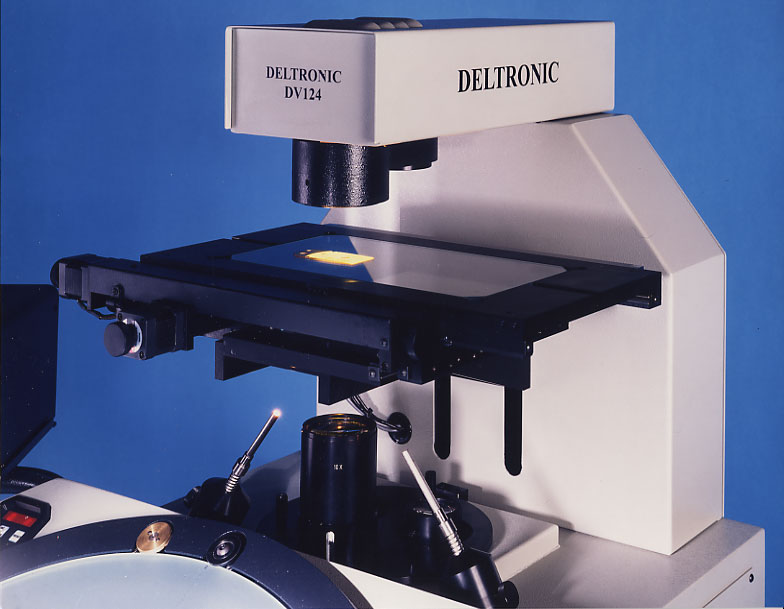

| DELTRONIC DV-124 VERTICAL OPTICAL COMPARATOR |
This model features a large 24" screen with a vertical workstage. Included is the standard 3-position
rotary lens turret. This floor model machine can be configured to be manual, motor-driven or automated.
Provides accurate, crisp images.
|
| Standard Features |
 |
· Fully Usable 24" Viewing Screen with
Edge-to-Edge Accuracy of 0.05%
· 8" X Axis (254 mm) and 4" Y Axis (15.2 mm)
Stage Travel
· Hard Anodized Stage Surface
· Screen Locking Mechanism
· Digital Electronic Protractor (ESP) with INC/ABS
Switchable Displays 1' or .01 degree
· Quick-Change 3-Position Lens Turret
· 30º Easy Viewing Screen Angle
· 150-Watt Illumination System with Hi/Low
Instensities
· 500-Watt Twin Fiber-Optic Surface Illumination
System
· Cross Roller Bearings
· Quick Release "X" Axis Clutch for Rapid Stage
Movement with Infinite Fine Adjustment
· Sturdy All-Metal Design
· Erect Optical Image
· Built-In Hood and Curtain (not shown)
· Telecentric Lens System
|
| Optional Features |
· Motorized Stage with Joystick Control
· Motorized Focus Axis
· Automated Measurement Systems (AMS),
Gives You Automatic Inspection
· Automatic Edge-Sensing
· 250-Watt Twin Fiber-Optic Illumination,
for Surface Measurement
· Extended 12" X Axis and 4" Y Axis Stage Table
|

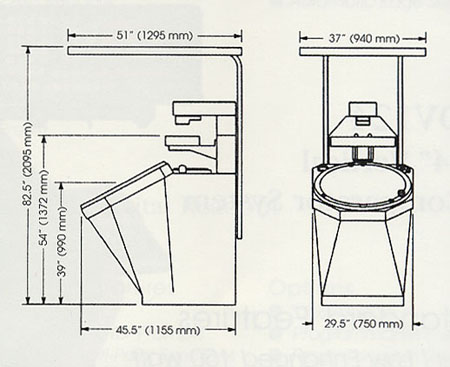

| Deltronic DV-124 Design Schematic |
|
