| DELTRONIC DV-114 VERTICAL OPTICAL COMPARATOR |
This model features a vertical design 14" screen with a 3-position rotary lens turret. This model is
a bench-top machine that provides crisp images and a high-degree of accuracy. This machine can be
configured to be manual, motor-driven or automated.
|
| Standard Features |
|
· Fully Usable 14" Screen
· Corrected Image Top to Bottom
· 8" X Axis X 4" Y Axis Stage Travel
· 3-Position Lens Turret Standard
· Rugged Construction
· "ESP" Digital Electronic Screen Protractor
with INC/ABS Switchable
· Three-Year Limited Warranty
· Glass Scales .0001" or .002 mm
(Except for DV114-RR)
· Includes a 10X, 20X, or 25X Lens
· 24-Volt 150-Watt High Intensity Illumination
· MPC Display Sidemount
|
| Optional Features |
· Motorized Stage with Joystick Control
· Automated Measurement System
· 250-Watt Twin Fiber-Optic Illumination for
Surface Measurement
· Automatic Edge-Sensing
· Extended Travel Stage 12" X 4"
|

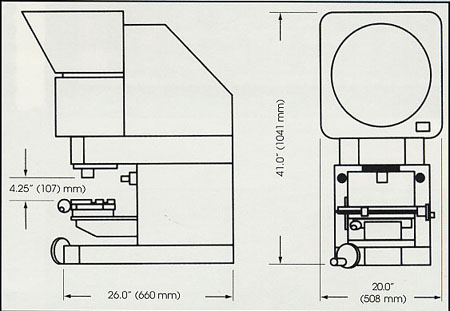

| Deltronic DV-114 Design Schematic |
|
