| DELTRONIC DH216 HORIZONTAL OPTICAL COMPARATOR |
This is the popular "work horse" of the Deltronic line. Its 16" digital
protractor screen is mounted into a compact bench-top instrument featuring
high accuracy and brilliant, crisp images.
|
| Standard Features |
|
· Fully Usable 16" Screen
· Corrected Image Top to Bottom
· 6" Vertical X 10" Horizontal Stage Travel
· Heat-Treated Nickel-Plated Stage Surface
· .001mm Glass Scales (Except for
DH216 RR)
· "ESP" Digital Electronic Screen Protractor
with INC/ABS Switchable
· Three-Year Limited Warranty
· Rugged Construction
· 10X or 20X Lens
· Rotary Helix Stage: +/- 15º with Reading
in 5' Increments
· 24-Volt 150 Watt High Intensity
Illumination
|
| Optional Features |
· Automated Measurement System
· Motorized Lens Focus
· Swing-Clear Lamp House for Viewing Ends
of Long Parts
· Fiber-Optic Surface Illumination
· 6" X 12" Stage Travel
· 6" X 18" Stage Travel
· Automatic Edge-Sensing
|

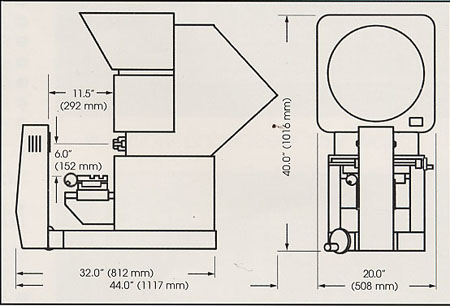

| Deltronic DH216 Design Schematic |
|
